open3d::visualization::gui::SceneWidget::MouseInteractor Class Reference

#include <SceneWidget.h>

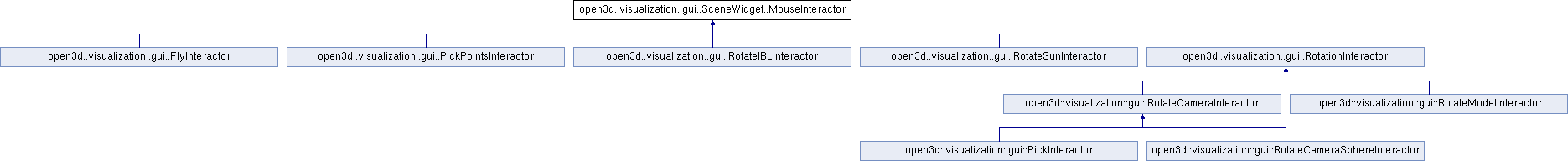

Inheritance diagram for open3d::visualization::gui::SceneWidget::MouseInteractor:

Public Member Functions
virtual	~MouseInteractor ()=default
virtual rendering::MatrixInteractorLogic &	GetMatrixInteractor ()=0
virtual void	Mouse (const MouseEvent &e)=0
virtual void	Key (const KeyEvent &e)=0
virtual bool	Tick (const TickEvent &e)

Constructor & Destructor Documentation

~MouseInteractor()

virtual open3d::visualization::gui::SceneWidget::MouseInteractor::~MouseInteractor ( )

virtualdefault

Member Function Documentation

GetMatrixInteractor()

virtual rendering::MatrixInteractorLogic& open3d::visualization::gui::SceneWidget::MouseInteractor::GetMatrixInteractor ( )

pure virtual

Implemented in open3d::visualization::gui::RotationInteractor, open3d::visualization::gui::FlyInteractor, open3d::visualization::gui::RotateIBLInteractor, open3d::visualization::gui::RotateSunInteractor, and open3d::visualization::gui::PickPointsInteractor.

Key()

virtual void open3d::visualization::gui::SceneWidget::MouseInteractor::Key ( const KeyEvent &  e )

pure virtual

Implemented in open3d::visualization::gui::PickInteractor, open3d::visualization::gui::RotationInteractor, open3d::visualization::gui::FlyInteractor, open3d::visualization::gui::RotateIBLInteractor, open3d::visualization::gui::RotateSunInteractor, and open3d::visualization::gui::PickPointsInteractor.

Mouse()

virtual void open3d::visualization::gui::SceneWidget::MouseInteractor::Mouse ( const MouseEvent &  e )

pure virtual

Implemented in open3d::visualization::gui::PickInteractor, open3d::visualization::gui::RotateCameraInteractor, open3d::visualization::gui::RotateModelInteractor, open3d::visualization::gui::RotationInteractor, open3d::visualization::gui::FlyInteractor, open3d::visualization::gui::RotateIBLInteractor, open3d::visualization::gui::RotateSunInteractor, and open3d::visualization::gui::PickPointsInteractor.

Tick()

virtual bool open3d::visualization::gui::SceneWidget::MouseInteractor::Tick ( const TickEvent &  e )

inlinevirtual

Reimplemented in open3d::visualization::gui::FlyInteractor.

---

The documentation for this class was generated from the following file:

• /home/runner/work/Open3D/Open3D/cpp/open3d/visualization/gui/SceneWidget.h (f1a0f3e (Tue Sep 26 09:25:00 2023 -0700))
