open3d::visualization::gui::BitmapWindowSystem Class Reference

#include <BitmapWindowSystem.h>

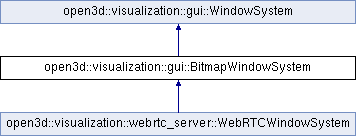

Inheritance diagram for open3d::visualization::gui::BitmapWindowSystem:

Data Structures
struct	Impl

Public Types
enum class	Rendering { NORMAL , HEADLESS }
using	OnDrawCallback = std::function< void(Window *, std::shared_ptr< core::Tensor >)>
Public Types inherited from open3d::visualization::gui::WindowSystem
using	OSWindow = void *

Public Member Functions
	BitmapWindowSystem (Rendering mode=Rendering::NORMAL)
	~BitmapWindowSystem ()
void	Initialize () override
void	Uninitialize () override
void	SetOnWindowDraw (OnDrawCallback callback)
void	WaitEventsTimeout (double timeout_secs) override
OSWindow	CreateOSWindow (Window *o3d_window, int width, int height, const char *title, int flags) override
void	DestroyWindow (OSWindow w) override
Size	GetScreenSize (OSWindow w) override
void	PostRedrawEvent (OSWindow w) override
void	PostMouseEvent (OSWindow w, const MouseEvent &e)
void	PostKeyEvent (OSWindow w, const KeyEvent &e)
void	PostTextInputEvent (OSWindow w, const TextInputEvent &e)
bool	GetWindowIsVisible (OSWindow w) const override
void	ShowWindow (OSWindow w, bool show) override
void	RaiseWindowToTop (OSWindow w) override
bool	IsActiveWindow (OSWindow w) const override
Point	GetWindowPos (OSWindow w) const override
void	SetWindowPos (OSWindow w, int x, int y) override
Size	GetWindowSize (OSWindow w) const override
void	SetWindowSize (OSWindow w, int width, int height) override
Size	GetWindowSizePixels (OSWindow w) const override
void	SetWindowSizePixels (OSWindow w, const Size &size) override
float	GetWindowScaleFactor (OSWindow w) const override
float	GetUIScaleFactor (OSWindow w) const override
void	SetWindowTitle (OSWindow w, const char *title) override
Point	GetMousePosInWindow (OSWindow w) const override
int	GetMouseButtons (OSWindow w) const override
void	CancelUserClose (OSWindow w) override
void *	GetNativeDrawable (OSWindow w) override
rendering::FilamentRenderer *	CreateRenderer (OSWindow w) override
void	ResizeRenderer (OSWindow w, rendering::FilamentRenderer *renderer) override
MenuBase *	CreateOSMenu () override
Public Member Functions inherited from open3d::visualization::gui::WindowSystem
virtual	~WindowSystem ()

Additional Inherited Members
Static Public Attributes inherited from open3d::visualization::gui::WindowSystem
static constexpr int	FLAG_VISIBLE = 0
static constexpr int	FLAG_HIDDEN = (1 << 0)
static constexpr int	FLAG_TOPMOST = (1 << 1)

Member Typedef Documentation

OnDrawCallback

using open3d::visualization::gui::BitmapWindowSystem::OnDrawCallback = std::function<void(Window*, std::shared_ptr<core::Tensor>)>

Member Enumeration Documentation

Rendering

enum open3d::visualization::gui::BitmapWindowSystem::Rendering

strong

Enumerator
NORMAL
HEADLESS

Constructor & Destructor Documentation

BitmapWindowSystem()

open3d::visualization::gui::BitmapWindowSystem::BitmapWindowSystem

(

Rendering

mode = Rendering::NORMAL

)

~BitmapWindowSystem()

open3d::visualization::gui::BitmapWindowSystem::~BitmapWindowSystem

(

)

Member Function Documentation

CancelUserClose()

void open3d::visualization::gui::BitmapWindowSystem::CancelUserClose ( OSWindow  w )

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

CreateOSMenu()

MenuBase * open3d::visualization::gui::BitmapWindowSystem::CreateOSMenu ( )

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

CreateOSWindow()

WindowSystem::OSWindow open3d::visualization::gui::BitmapWindowSystem::CreateOSWindow ( Window *  o3d_window, int  width, int  height, const char *  title, int  flags  )

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

Reimplemented in open3d::visualization::webrtc_server::WebRTCWindowSystem.

CreateRenderer()

rendering::FilamentRenderer * open3d::visualization::gui::BitmapWindowSystem::CreateRenderer ( OSWindow  w )

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

DestroyWindow()

void open3d::visualization::gui::BitmapWindowSystem::DestroyWindow ( OSWindow  w )

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

Reimplemented in open3d::visualization::webrtc_server::WebRTCWindowSystem.

GetMouseButtons()

int open3d::visualization::gui::BitmapWindowSystem::GetMouseButtons ( OSWindow  w ) const

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

GetMousePosInWindow()

Point open3d::visualization::gui::BitmapWindowSystem::GetMousePosInWindow ( OSWindow  w ) const

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

GetNativeDrawable()

void * open3d::visualization::gui::BitmapWindowSystem::GetNativeDrawable ( OSWindow  w )

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

GetScreenSize()

Size open3d::visualization::gui::BitmapWindowSystem::GetScreenSize ( OSWindow  w )

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

GetUIScaleFactor()

float open3d::visualization::gui::BitmapWindowSystem::GetUIScaleFactor ( OSWindow  w ) const

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

GetWindowIsVisible()

bool open3d::visualization::gui::BitmapWindowSystem::GetWindowIsVisible ( OSWindow  w ) const

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

GetWindowPos()

Point open3d::visualization::gui::BitmapWindowSystem::GetWindowPos ( OSWindow  w ) const

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

GetWindowScaleFactor()

float open3d::visualization::gui::BitmapWindowSystem::GetWindowScaleFactor ( OSWindow  w ) const

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

GetWindowSize()

Size open3d::visualization::gui::BitmapWindowSystem::GetWindowSize ( OSWindow  w ) const

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

GetWindowSizePixels()

Size open3d::visualization::gui::BitmapWindowSystem::GetWindowSizePixels ( OSWindow  w ) const

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

Initialize()

void open3d::visualization::gui::BitmapWindowSystem::Initialize ( )

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

IsActiveWindow()

bool open3d::visualization::gui::BitmapWindowSystem::IsActiveWindow ( OSWindow  w ) const

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

PostKeyEvent()

void open3d::visualization::gui::BitmapWindowSystem::PostKeyEvent	(	OSWindow	w,
		const KeyEvent &	e
	)

PostMouseEvent()

void open3d::visualization::gui::BitmapWindowSystem::PostMouseEvent	(	OSWindow	w,
		const MouseEvent &	e
	)

PostRedrawEvent()

void open3d::visualization::gui::BitmapWindowSystem::PostRedrawEvent ( OSWindow  w )

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

PostTextInputEvent()

void open3d::visualization::gui::BitmapWindowSystem::PostTextInputEvent	(	OSWindow	w,
		const TextInputEvent &	e
	)

RaiseWindowToTop()

void open3d::visualization::gui::BitmapWindowSystem::RaiseWindowToTop ( OSWindow  w )

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

ResizeRenderer()

void open3d::visualization::gui::BitmapWindowSystem::ResizeRenderer ( OSWindow  w, rendering::FilamentRenderer *  renderer  )

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

SetOnWindowDraw()

void open3d::visualization::gui::BitmapWindowSystem::SetOnWindowDraw

(

OnDrawCallback

callback

)

SetWindowPos()

void open3d::visualization::gui::BitmapWindowSystem::SetWindowPos ( OSWindow  w, int  x, int  y  )

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

SetWindowSize()

void open3d::visualization::gui::BitmapWindowSystem::SetWindowSize ( OSWindow  w, int  width, int  height  )

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

SetWindowSizePixels()

void open3d::visualization::gui::BitmapWindowSystem::SetWindowSizePixels ( OSWindow  w, const Size &  size  )

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

SetWindowTitle()

void open3d::visualization::gui::BitmapWindowSystem::SetWindowTitle ( OSWindow  w, const char *  title  )

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

ShowWindow()

void open3d::visualization::gui::BitmapWindowSystem::ShowWindow ( OSWindow  w, bool  show  )

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

Uninitialize()

void open3d::visualization::gui::BitmapWindowSystem::Uninitialize ( )

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

WaitEventsTimeout()

void open3d::visualization::gui::BitmapWindowSystem::WaitEventsTimeout ( double  timeout_secs )

overridevirtual

Implements open3d::visualization::gui::WindowSystem.

---

The documentation for this class was generated from the following files:

• /home/runner/work/Open3D/Open3D/cpp/open3d/visualization/gui/BitmapWindowSystem.h (252c867 (Sun May 5 05:39:34 2024 +0000))
• /home/runner/work/Open3D/Open3D/cpp/open3d/visualization/gui/BitmapWindowSystem.cpp (252c867 (Sun May 5 05:39:34 2024 +0000))
