open3d::geometry::Geometry2D Class Reference

#include <Geometry2D.h>

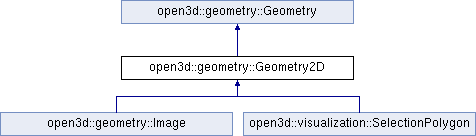

Inheritance diagram for open3d::geometry::Geometry2D:

Public Member Functions
	~Geometry2D () override
void	Clear () override=0
bool	IsEmpty () const override=0
virtual Eigen::Vector2d	GetMinBound () const =0
virtual Eigen::Vector2d	GetMaxBound () const =0
Public Member Functions inherited from open3d::geometry::Geometry
virtual	~Geometry ()
GeometryType	GetGeometryType () const
int	Dimension () const

Protected Member Functions
	Geometry2D (GeometryType type)
Protected Member Functions inherited from open3d::geometry::Geometry
	Geometry (GeometryType type, int dimension)

Additional Inherited Members
Public Types inherited from open3d::geometry::Geometry
enum	GeometryType {   GeometryType::Unspecified = 0, GeometryType::PointCloud = 1, GeometryType::VoxelGrid = 2, GeometryType::Octree = 3,   GeometryType::LineSet = 4, GeometryType::TriangleMesh = 5, GeometryType::HalfEdgeTriangleMesh = 6, GeometryType::Image = 7 }

Constructor & Destructor Documentation

~Geometry2D()

open3d::geometry::Geometry2D::~Geometry2D ( )

inlineoverride

Geometry2D()

open3d::geometry::Geometry2D::Geometry2D ( GeometryType  type )

inlineprotected

Member Function Documentation

Clear()

void open3d::geometry::Geometry2D::Clear ( )

overridepure virtual

Implements open3d::geometry::Geometry.

Implemented in open3d::visualization::SelectionPolygon, and open3d::geometry::Image.

GetMaxBound()

virtual Eigen::Vector2d open3d::geometry::Geometry2D::GetMaxBound ( ) const

pure virtual

Implemented in open3d::visualization::SelectionPolygon, and open3d::geometry::Image.

GetMinBound()

virtual Eigen::Vector2d open3d::geometry::Geometry2D::GetMinBound ( ) const

pure virtual

Implemented in open3d::visualization::SelectionPolygon, and open3d::geometry::Image.

IsEmpty()

bool open3d::geometry::Geometry2D::IsEmpty ( ) const

overridepure virtual

Implements open3d::geometry::Geometry.

Implemented in open3d::visualization::SelectionPolygon, and open3d::geometry::Image.

---

The documentation for this class was generated from the following file:

• /home/ylao/repo/Open3D/src/Open3D/Geometry/Geometry2D.h
