SUN datasetΒΆ

This tutorial reads and visualizes an RGBDImage of the SUN dataset [Song2015].

 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
# examples/Python/Basic/rgbd_sun.py

from open3d import *
import matplotlib.pyplot as plt


if __name__ == "__main__":
    print("Read SUN dataset")
    color_raw = read_image("../../TestData/RGBD/other_formats/SUN_color.jpg")
    depth_raw = read_image("../../TestData/RGBD/other_formats/SUN_depth.png")
    rgbd_image = create_rgbd_image_from_sun_format(color_raw, depth_raw);
    print(rgbd_image)
    plt.subplot(1, 2, 1)
    plt.title('SUN grayscale image')
    plt.imshow(rgbd_image.color)
    plt.subplot(1, 2, 2)
    plt.title('SUN depth image')
    plt.imshow(rgbd_image.depth)
    plt.show()
    pcd = create_point_cloud_from_rgbd_image(rgbd_image, PinholeCameraIntrinsic(
            PinholeCameraIntrinsicParameters.PrimeSenseDefault))
    # Flip it, otherwise the pointcloud will be upside down
    pcd.transform([[1, 0, 0, 0], [0, -1, 0, 0], [0, 0, -1, 0], [0, 0, 0, 1]])
    draw_geometries([pcd])

This tutorial is almost the same as the tutorial processing Redwood dataset. The only difference is that we use conversion function create_rgbd_image_from_sun_format to parse depth images in the SUN dataset.

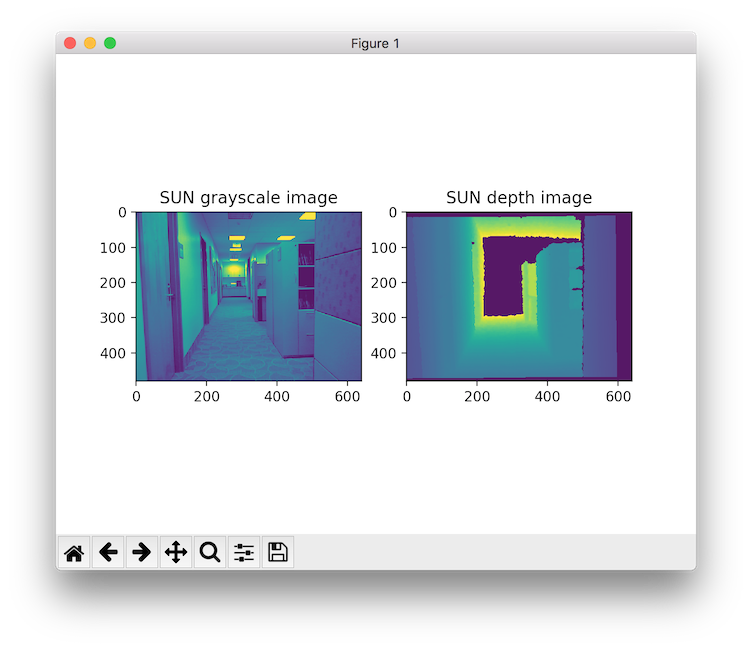

Similarly, the RGBDImage can be rendered as numpy arrays:

../../../_images/sun_rgbd.png

Or a point cloud:

../../../_images/sun_pcd.png
