Color Map Optimization

Consider color mapping to the geometry reconstructed from depth cameras. As color and depth frames are not perfectly aligned, the texture mapping using color images is subject to results in blurred color map. Open3D provides color map optimization method proposed by [Zhou2014]. The following script shows an example of color map optimization.

Input

This code below reads color and depth image pairs and makes rgbd_image. Note that convert_rgb_to_intensity flag is False. This is to preserve 8-bit color channels instead of using single channel float type image.

It is always good practice to visualize the RGBD image before applying it to the color map optimization. The debug_mode switch can be set to True to visualize the RGBD image.

[2]:
def sorted_alphanum(file_list_ordered):
    convert = lambda text: int(text) if text.isdigit() else text
    alphanum_key = lambda key: [convert(c) for c in re.split('([0-9]+)', key)]
    return sorted(file_list_ordered, key=alphanum_key)


def get_file_list(path, extension=None):
    if extension is None:
        file_list = [
            path + f for f in os.listdir(path) if os.path.isfile(join(path, f))
        ]
    else:
        file_list = [
            path + f
            for f in os.listdir(path)
            if os.path.isfile(os.path.join(path, f)) and
            os.path.splitext(f)[1] == extension
        ]
    file_list = sorted_alphanum(file_list)
    return file_list
[3]:
path = o3dtut.download_fountain_dataset()
debug_mode = False

rgbd_images = []
depth_image_path = get_file_list(os.path.join(path, "depth/"), extension=".png")
color_image_path = get_file_list(os.path.join(path, "image/"), extension=".jpg")
assert (len(depth_image_path) == len(color_image_path))
for i in range(len(depth_image_path)):
    depth = o3d.io.read_image(os.path.join(depth_image_path[i]))
    color = o3d.io.read_image(os.path.join(color_image_path[i]))
    rgbd_image = o3d.geometry.RGBDImage.create_from_color_and_depth(
        color, depth, convert_rgb_to_intensity=False)
    if debug_mode:
        pcd = o3d.geometry.PointCloud.create_from_rgbd_image(
            rgbd_image,
            o3d.camera.PinholeCameraIntrinsic(
                o3d.camera.PinholeCameraIntrinsicParameters.PrimeSenseDefault))
        o3d.visualization.draw_geometries([pcd])
    rgbd_images.append(rgbd_image)
downloading fountain dataset
extract fountain dataset

The code below reads a camera trajectory and a mesh.

[4]:
camera = o3d.io.read_pinhole_camera_trajectory(
    os.path.join(path, "scene/key.log"))
mesh = o3d.io.read_triangle_mesh(os.path.join(path, "scene", "integrated.ply"))

To visualize how the camera poses are not good for color mapping, this code intentionally sets the iteration number to 0, which means no optimization. color_map_optimization paints a mesh using corresponding RGBD images and camera poses. Without optimization, the texture map is blurred.

[5]:
# Before full optimization, let's just visualize texture map
# with given geometry, RGBD images, and camera poses.
option = o3d.pipelines.color_map.ColorMapOptimizationOption()
option.maximum_iteration = 0
with o3d.utility.VerbosityContextManager(
        o3d.utility.VerbosityLevel.Debug) as cm:
    o3d.pipelines.color_map.color_map_optimization(mesh, rgbd_images, camera,
                                                   option)
[Open3D DEBUG] [ColorMapOptimization]
[Open3D DEBUG] [ColorMapOptimization] :: MakingMasks
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 0/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 1/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 2/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 3/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 4/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 5/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 6/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 7/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 8/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 9/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 10/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 11/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 12/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 13/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 14/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 15/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 16/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 17/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 18/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 19/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 20/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 21/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 22/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 23/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 24/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 25/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 26/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 27/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 28/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 29/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 30/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 31/33
[Open3D DEBUG] [MakeDepthMasks] geometry::Image 32/33
[Open3D DEBUG] [ColorMapOptimization] :: VisibilityCheck
[Open3D DEBUG] [cam 0]: 238774/536872 (44.47503%) vertices are visible
[Open3D DEBUG] [cam 1]: 264228/536872 (49.21620%) vertices are visible
[Open3D DEBUG] [cam 2]: 32910/536872 (6.12995%) vertices are visible
[Open3D DEBUG] [cam 3]: 207076/536872 (38.57083%) vertices are visible
[Open3D DEBUG] [cam 4]: 208953/536872 (38.92045%) vertices are visible
[Open3D DEBUG] [cam 5]: 121789/536872 (22.68492%) vertices are visible
[Open3D DEBUG] [cam 6]: 139892/536872 (26.05686%) vertices are visible
[Open3D DEBUG] [cam 7]: 94112/536872 (17.52969%) vertices are visible
[Open3D DEBUG] [cam 8]: 136523/536872 (25.42934%) vertices are visible
[Open3D DEBUG] [cam 9]: 88157/536872 (16.42049%) vertices are visible
[Open3D DEBUG] [cam 10]: 119823/536872 (22.31873%) vertices are visible
[Open3D DEBUG] [cam 11]: 183991/536872 (34.27092%) vertices are visible
[Open3D DEBUG] [cam 12]: 238849/536872 (44.48900%) vertices are visible
[Open3D DEBUG] [cam 13]: 222246/536872 (41.39646%) vertices are visible
[Open3D DEBUG] [cam 14]: 220761/536872 (41.11986%) vertices are visible
[Open3D DEBUG] [cam 15]: 257217/536872 (47.91030%) vertices are visible
[Open3D DEBUG] [cam 16]: 123058/536872 (22.92129%) vertices are visible
[Open3D DEBUG] [cam 17]: 155657/536872 (28.99332%) vertices are visible
[Open3D DEBUG] [cam 18]: 109616/536872 (20.41753%) vertices are visible
[Open3D DEBUG] [cam 19]: 132968/536872 (24.76717%) vertices are visible
[Open3D DEBUG] [cam 20]: 125766/536872 (23.42570%) vertices are visible
[Open3D DEBUG] [cam 21]: 118639/536872 (22.09819%) vertices are visible
[Open3D DEBUG] [cam 22]: 112538/536872 (20.96179%) vertices are visible
[Open3D DEBUG] [cam 23]: 76603/536872 (14.26839%) vertices are visible
[Open3D DEBUG] [cam 24]: 74932/536872 (13.95714%) vertices are visible
[Open3D DEBUG] [cam 25]: 79252/536872 (14.76181%) vertices are visible
[Open3D DEBUG] [cam 26]: 107727/536872 (20.06568%) vertices are visible
[Open3D DEBUG] [cam 27]: 114058/536872 (21.24491%) vertices are visible
[Open3D DEBUG] [cam 28]: 128703/536872 (23.97275%) vertices are visible
[Open3D DEBUG] [cam 29]: 149558/536872 (27.85729%) vertices are visible
[Open3D DEBUG] [cam 30]: 165234/536872 (30.77717%) vertices are visible
[Open3D DEBUG] [cam 31]: 104629/536872 (19.48863%) vertices are visible
[Open3D DEBUG] [cam 32]: 50546/536872 (9.41491%) vertices are visible
[Open3D DEBUG] [ColorMapOptimization] :: Rigid Optimization
[Open3D DEBUG] [RemoveDuplicatedVertices] 0 vertices have been removed.
[Open3D DEBUG] [RemoveDuplicatedTriangles] 0 triangles have been removed.
[Open3D DEBUG] [RemoveUnreferencedVertices] 733 vertices have been removed.
[Open3D DEBUG] [RemoveDegenerateTriangles] 0 triangles have been removed.
[Open3D DEBUG] Triangle mesh sampled from 536872 vertices and 1033745 triangles to 504168 vertices and 976313 triangles.

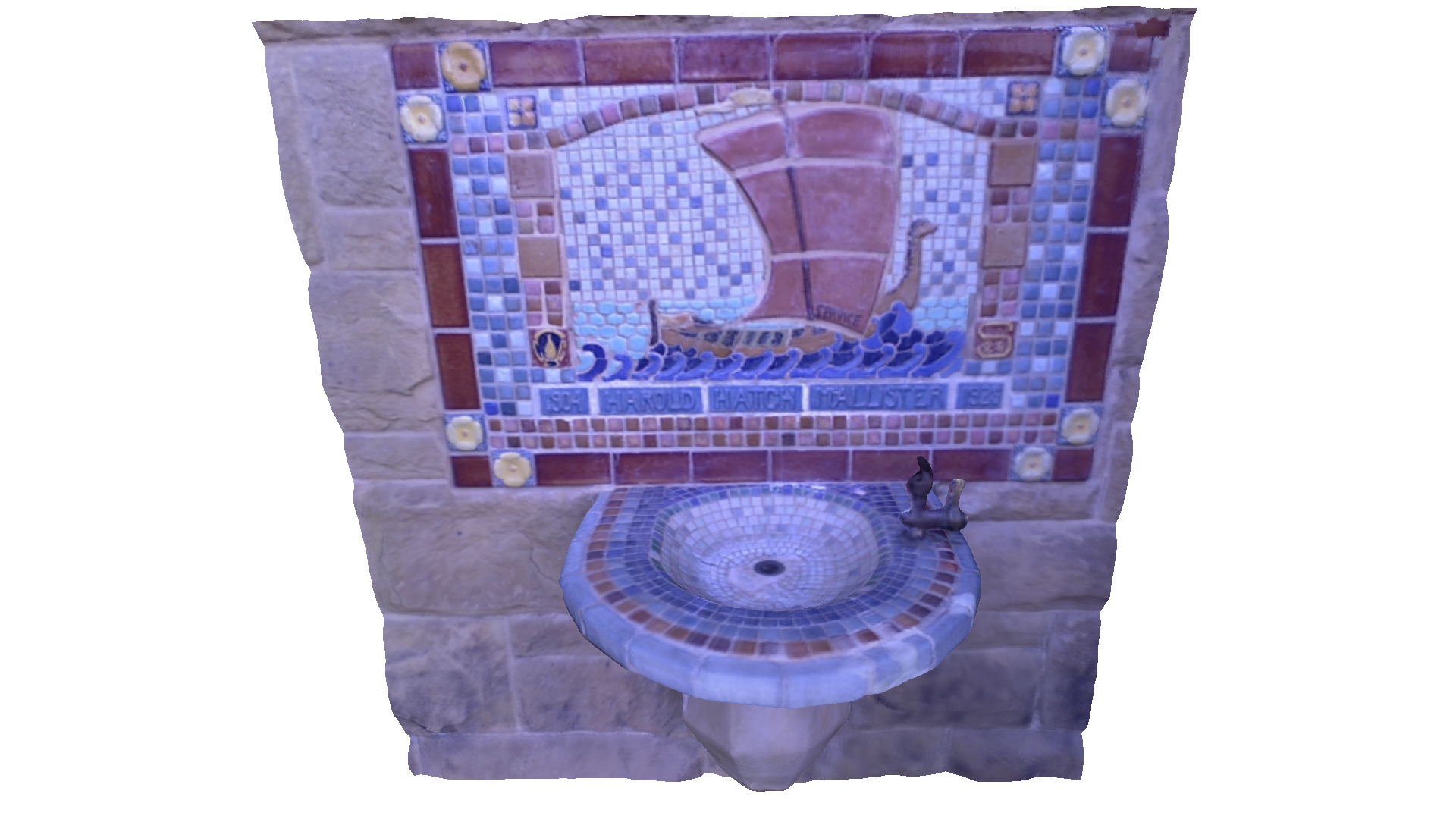

[6]:
o3d.visualization.draw_geometries([mesh],
                                  zoom=0.5399,
                                  front=[0.0665, -0.1107, -0.9916],
                                  lookat=[0.7353, 0.6537, 1.0521],
                                  up=[0.0136, -0.9936, 0.1118])
../../_images/tutorial_pipelines_color_map_optimization_9_0.png

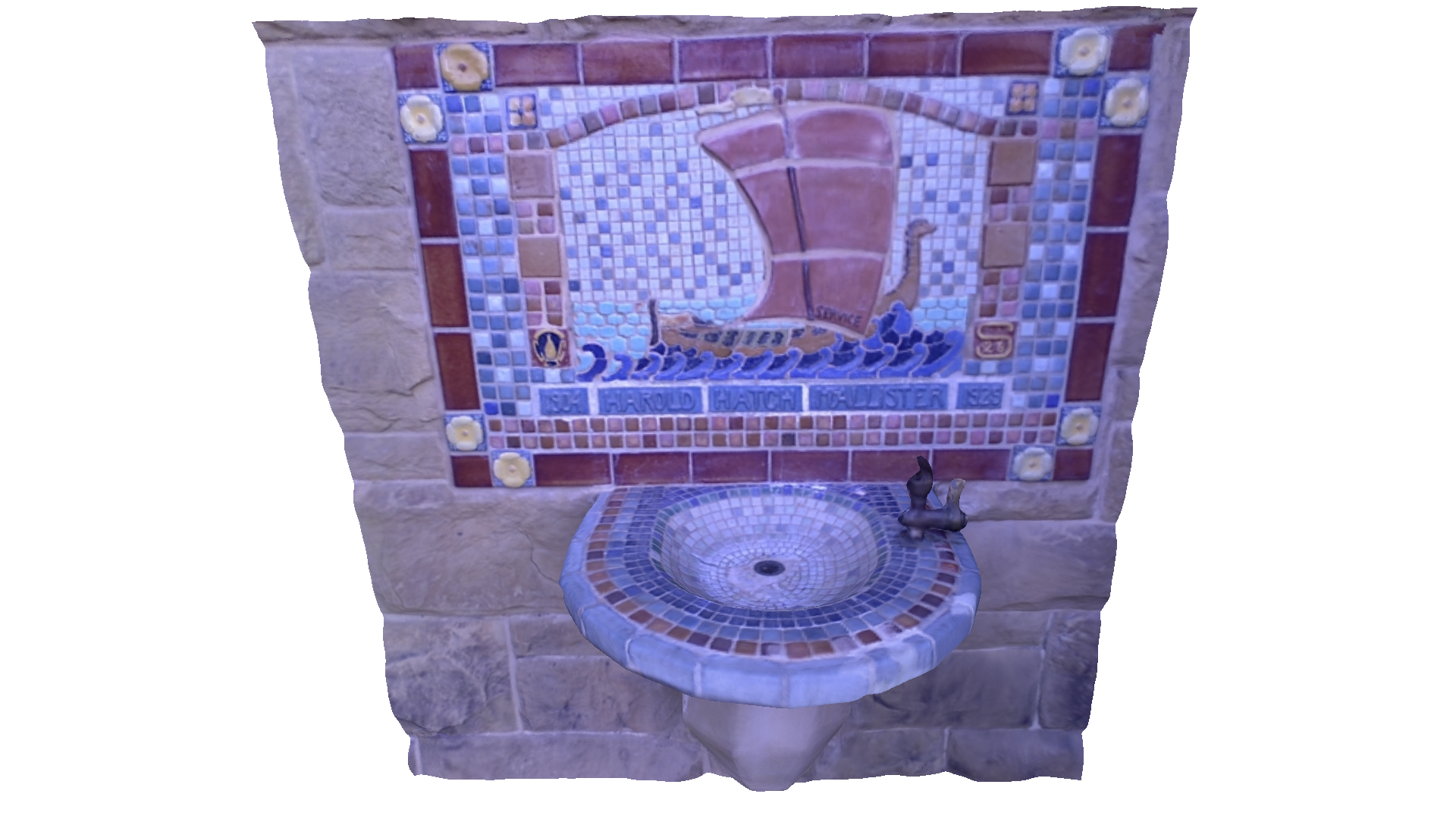

Rigid Optimization
