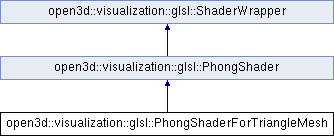

Inheritance diagram for open3d::visualization::glsl::PhongShaderForTriangleMesh:

Public Member Functions
	PhongShaderForTriangleMesh ()

Public Member Functions inherited from open3d::visualization::glsl::PhongShader
	~PhongShader () override

Public Member Functions inherited from open3d::visualization::glsl::ShaderWrapper
virtual	~ShaderWrapper ()

	ShaderWrapper (const ShaderWrapper &)=delete

ShaderWrapper &	operator= (const ShaderWrapper &)=delete

bool	Render (const geometry::Geometry &geometry, const RenderOption &option, const ViewControl &view)

void	InvalidateGeometry ()

const std::string &	GetShaderName () const

void	PrintShaderWarning (const std::string &message) const

Protected Member Functions
bool	PrepareRendering (const geometry::Geometry &geometry, const RenderOption &option, const ViewControl &view) final

bool	PrepareBinding (const geometry::Geometry &geometry, const RenderOption &option, const ViewControl &view, std::vector< Eigen::Vector3f > &points, std::vector< Eigen::Vector3f > &normals, std::vector< Eigen::Vector3f > &colors) final

Protected Member Functions inherited from open3d::visualization::glsl::PhongShader
	PhongShader (const std::string &name)

bool	Compile () final

void	Release () final

bool	BindGeometry (const geometry::Geometry &geometry, const RenderOption &option, const ViewControl &view) final

bool	RenderGeometry (const geometry::Geometry &geometry, const RenderOption &option, const ViewControl &view) final

void	UnbindGeometry () final

void	SetLighting (const ViewControl &view, const RenderOption &option)

Protected Member Functions inherited from open3d::visualization::glsl::ShaderWrapper
	ShaderWrapper (const std::string &name)

bool	ValidateShader (GLuint shader_index)

bool	ValidateProgram (GLuint program_index)

bool	CompileShaders (const char const vertex_shader_code, const char const geometry_shader_code, const char *const fragment_shader_code)

void	ReleaseProgram ()

void	SetShaderName (const std::string &shader_name)

Additional Inherited Members
Protected Attributes inherited from open3d::visualization::glsl::PhongShader
GLuint	vertex_position_

GLuint	vertex_position_buffer_

GLuint	vertex_color_

GLuint	vertex_color_buffer_

GLuint	vertex_normal_

GLuint	vertex_normal_buffer_

GLuint	MVP_

GLuint	V_

GLuint	M_

GLuint	light_position_world_

GLuint	light_color_

GLuint	light_diffuse_power_

GLuint	light_specular_power_

GLuint	light_specular_shininess_

GLuint	light_ambient_

gl_util::GLMatrix4f	light_position_world_data_

gl_util::GLMatrix4f	light_color_data_

gl_util::GLVector4f	light_diffuse_power_data_

gl_util::GLVector4f	light_specular_power_data_

gl_util::GLVector4f	light_specular_shininess_data_

gl_util::GLVector4f	light_ambient_data_

Protected Attributes inherited from open3d::visualization::glsl::ShaderWrapper
GLuint	vertex_shader_ = 0

GLuint	geometry_shader_ = 0

GLuint	fragment_shader_ = 0

GLuint	program_ = 0

GLenum	draw_arrays_mode_ = GL_POINTS

GLsizei	draw_arrays_size_ = 0

bool	compiled_ = false

bool	bound_ = false

Constructor & Destructor Documentation

◆ PhongShaderForTriangleMesh()

open3d::visualization::glsl::PhongShaderForTriangleMesh::PhongShaderForTriangleMesh ( )

inline

bool open3d::visualization::glsl::PhongShaderForTriangleMesh::PrepareBinding	(	const geometry::Geometry &	geometry,
		const RenderOption &	option,
		const ViewControl &	view,
		std::vector< Eigen::Vector3f > &	points,
		std::vector< Eigen::Vector3f > &	normals,
		std::vector< Eigen::Vector3f > &	colors
	)

finalprotectedvirtual

bool open3d::visualization::glsl::PhongShaderForTriangleMesh::PrepareRendering	(	const geometry::Geometry &	geometry,
		const RenderOption &	option,
		const ViewControl &	view
	)

finalprotectedvirtual

The documentation for this class was generated from the following files:
